XL314 Sloping Panel Socket 16A 3P+E 6h IP44
800 - XL314
800 - XL314
XL314 Sloping Panel Socket 16A 3P+E 6h IP44
16A3P+EIP446hXL Series
Rated current: 16A
Rated voltage: 380-415V～
Frequency: 50/60Hz
Number of poles: 3P+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelXL314
Commercial SeriesXL Series
Product descriptionPanel Socket
Mouting versionMounted
ColourRed
Rated current16A
Rated voltage380-415V
Poles3P+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
TerminalsScrew terminals

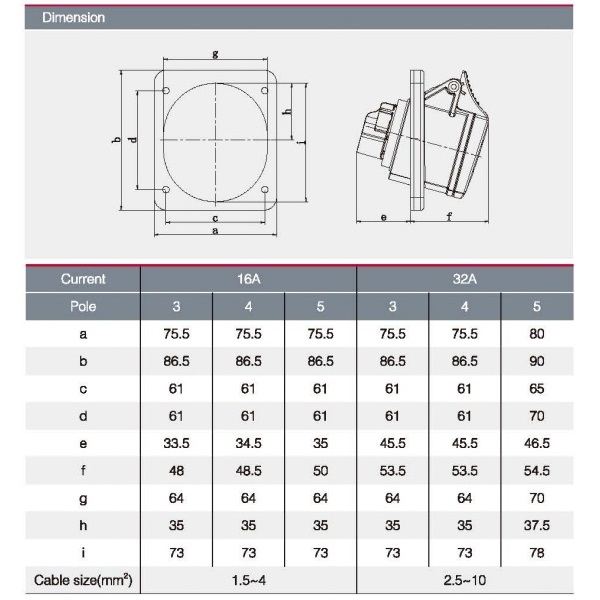

Dimension

600 x 600 - P8.jpg
