DT3230060 Multiple Outlet Socket 32A 2P+E 6h IP44
DT3230060
DT3230060
DT3230060 Multiple Outlet Socket 32A 2P+E 6h IP44
32A2P+EIP446h
Rated current: 32A
Rated voltage: 220-250V～
Frequency: 50/60Hz
Number of poles: 2P+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelDT3230060
Commercial SeriesDT Series
Product descriptionMultiple Outlet Socket
Mouting versionPortable
Input plugCEE 32A/3P/230V
Output Sockets3 CEE 16A/3P/230V
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
Notes3-way adaptors

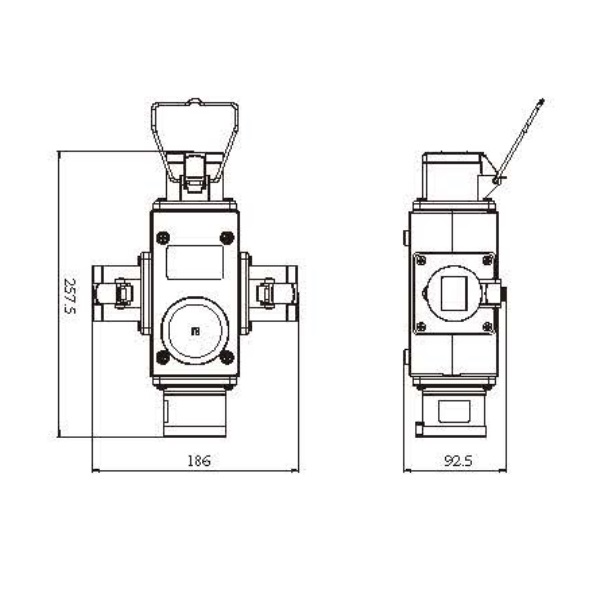

Dimension

P36 -4.jpg
