HTN7251 CEE Industrial Plug with phase inverter 32A 3P+N+E 6h IP67
HTN7151 HTN7251
HTN7151 HTN7251
HTN7251 CEE Industrial Plug with phase inverter 32A 3P+N+E 6h IP67
32A3P+N+EIP676h
Rated current: 32A
Rated voltage: 220-380V/240-415V～
Frequency: 50/60Hz
Number of poles: 3P+N+E
IP-Class: IP67
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTN7251
Commercial SeriesHTN Series
Product descriptionPLUG
Mouting versionPortable
ColourRed
Rated current32A
Rated voltage380-415V
Poles3P+N+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP67
Protection degreeWatertight
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals

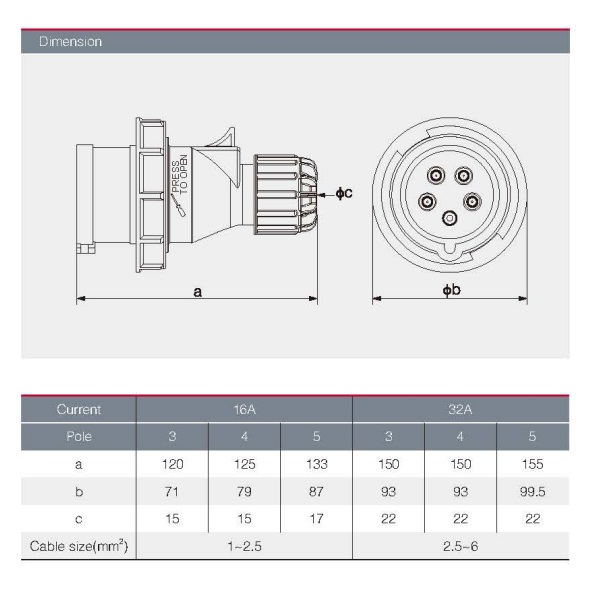

Dimension
