CTB325 Container Box 32A 3P+N+E 6h IP44
CTB165&325
CTB165&325
CTB325 Container Box 32A 3P+N+E 6h IP44
32A3P+N+EIP446h
Rated current: 32A
Rated voltage: 220-380V/240-415V～
Frequency: 50/60Hz
Number of poles: 3P+N+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModeCTB325
Commercial SeriesCTB Series
Product descriptionContainer box
Mouting versionMounted
Input plugCEE 32A/5P/400V
Output SocketsCEE 32A/5P/400V
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPC/ABS

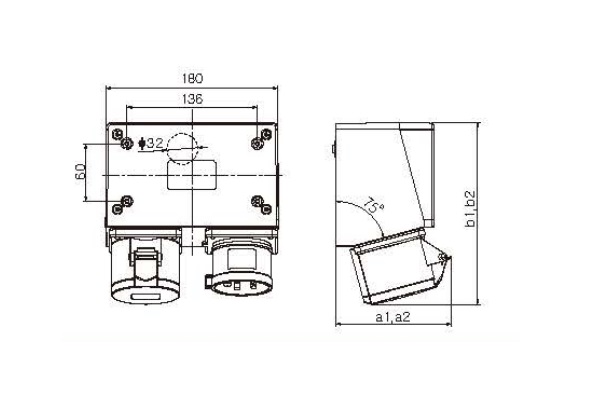

Dimension

P38 -1.jpg
